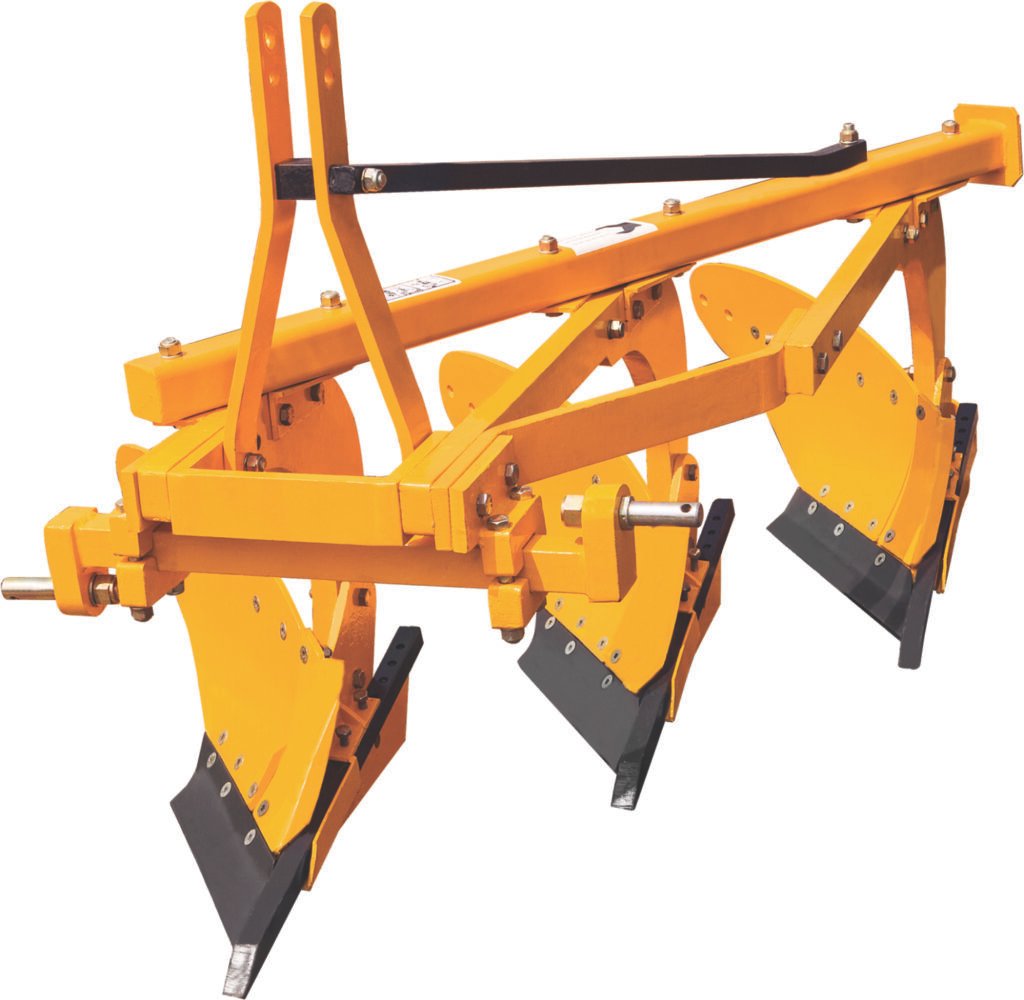

Swan Agro MB Plough can handle the toughest ploughing job with outstanding penetration performance. This plough has special wear –resistance steel blade and bar points. These plough are designed by experts and can be easily mounted on tractor directly with ease.
Available in size 2 furrow, 3 furrow & 4 furrow.
Features
- The ground clearance form under frame and unit to unit clearance are adequate to cope
- Adding an extra furrow or repositioning units to allow for extra clearance is quick and easy
- The plough has robust steel blade with bar points for toughest ploughing jobs.
- Bar point having longer life, as they can be extended till the last possible length.
Advantages
- Swan MB Plough gives very good inversion and penetration of soil & tougher ploughing job.
- Designed to work in all types of soil.
- Soil breaking, raising and turning can be done.
- It can be used in stony & rooted soil too.
Technical Specifications
| wdt_ID | Description/ Models | NSE MBP - 2 | NSE MBP - 3 | NSE MBP - 4 |
|---|---|---|---|---|
| 1 | Furrow | 2 Furrow | 3 Furrow | 4 Furrow |
| 2 | Frame (mm) | 80 × 80 × 7 (Box) | 80 × 80 × 7 (Box) | 80 × 80 × 7 (Box) |
| 3 | Draw bar Board (mm) | 50 (Solid Rod) | 50 (Solid Rod) | |
| 4 | Tyne (mm) | 36 (profile cut Single Piece) | 36 (profile cut Single Piece) | 36 (profile cut Single Piece) |
| 5 | Length (mm) | 1300 | 1800 | 2460 |
| 6 | Height (mm) | 1066 | 1066 | |
| 7 | Blade (mm) | 10 | 10 | 10 |
| 8 | Mould Board (mm) | 8 | 8 | 8 |
| 9 | Bar Point (mm) | 40 × 25 (Bar Forged) | 40 × 25 (Bar Forged) | 40 × 25 (Bar Forged) |
| 10 | 3 Point Linkage lever & connecting rod (mm) | 65 × 16 (Flat) & 32 (Square) | 65 × 16 (Flat) & 32 (Square) | 65 × 16 (Flat) & 32 (Square) |
| 11 | Weight of Cut (mm) | 610 | 910 | 1210 |
| 12 | Depth of Cut (mm) | 350 | 350 | 350 |
| 13 | Weight (Kgs. Approx.) | 235 | 350 | 455 |
| 14 | Tractor Power (HP) | 35 - 40 | 55-60 | 80-90 |
