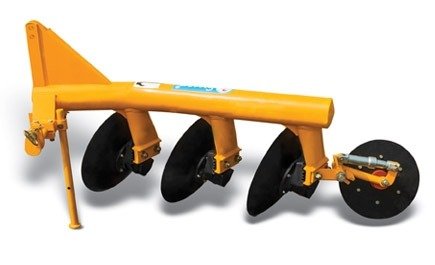

Swan Agro Disc Plough is manufactured as per international quality. The facility is designed to work in all type of soil for basic function such as soil breaking, soil turning and soil raising. They are made with forged alloy steel and are heat treated to work efficiently in hard and dry trashy land conditions.
Available in 2 disc, 3 disc, 4 disc & 5 disc.
Features
- Easily mounted on Tractor.
- High Trash clearance allows plough to operate in high crop residue.
- Specially designed with heavy duty pipe frame for extreme conditions
- Option for extra kit for converting it to extra bottom plough.
Advantages
- Swan disc plough is designed to open new fields.
- Easily used in rocky and rooted areas.
- Suitable in all types of soil.
- Soil Breaking, Turning , Raising, and Mixing of soil is done very well.
Technical Specifications
| wdt_ID | Description/ Models | NSMDP-2 | NSMDP-3 | NSMDP-4 | NSMDP-5 |
|---|---|---|---|---|---|
| 1 | Frame (mm) | Seamless Tubular Frame (OD 168, ID 146) | Seamless Tubular Frame (OD 168, ID 146) | Seamless Tubular Frame (OD 168, ID 146) | Seamless Tubular Frame (OD 168, ID 146) |
| 2 | Axle type | Spindle | Spindle | Spindle | Spindle |
| 3 | No. of Disc | 2 | 3 | 4 | 5 |
| 4 | Mounted Cat. | CAT-II | CAT-II | CAT-II | CAT-III |
| 5 | Type of Disc | Plain Disc | Plain Disc | Plain Disc | Plain Disc |
| 6 | Disc (Diameter) | 660 X 6 T (26”) or 710 X 7 T (28”) | 660 X 6 T (26”) or 710 X 7 T (28”) | 660 X 6 T (26”) or 710 X 7 T (28”) | 660 X 6 T (26”) or 710 X 7 T (28”) |
| 7 | No. of Blades | 570 | 570 | 570 | 570 |
| 8 | Blade specifications | 500-550 | 875-925 | 1150-1200 | 1575-1625 |
| 9 | Bearing Hub | 2 | 3 | 4 | 5 |
| 10 | Weight (Kgs. Approx.) | 310 | 410 | 510 | 620 |
| 11 | Tractor Power (HP) | 50-60 | 65-80 | 85-100 | 105-125 |
