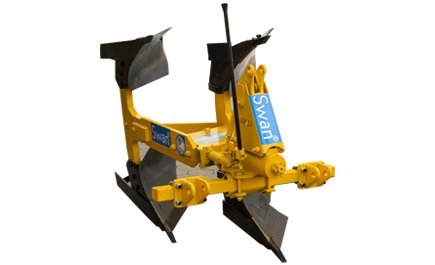

Swan AgroTwo furrow hydraulic reversible plough can handle the toughest ploughing job with outstanding penetration performance. The under frame and unit-to-unit clearance are adequate to cope with trashy conditions. This facility has safety bolt protection which prevent breakage of mould board or tynes in case of any obstacles comes during ploughing operation.
Available in 2 Furrow.
Features
- The Ground clearance from under frame and unit to unit clearance are adequate to cope with trashy conditions.
- Adding an extra furrow or repositioning unit to allow extra clearance is quick and easy.
- The plough has robust steel blade with bar points for toughest ploughing jobs.
- Bar point having longer life , as they can be extended till the last possible length.
Advantages
- Swan Reversible MB plough gives excellent penetration of soil & toughest ploughing job.
- It is designed to work in all types of soil for basic function such as soil breaking soil rising and soil inversion
- It can be used in stony & rooted soil too.
Technical Specifications
| wdt_ID | Description/ Models | NSE RMB 1 |
|---|---|---|
| 1 | No. of Furrows | 2 |
| 2 | Box Frame (mm) | 97 × 97 9 T (Box) |
| 3 | Tyne (mm) | 86 × 36 |
| 4 | Mould Board (mm) | 8 |
| 5 | Plough Share (mm) | 10 |
| 6 | Point (mm) | 100 × 15 ( Forged ) |
| 7 | Head Stock Bearing | 32213, 33015 |
| 8 | Turnover Mechanism | Hydraulic |
| 9 | Width of cut (mm) | 736 |
| 10 | Depth of cut (mm) | 355 |
