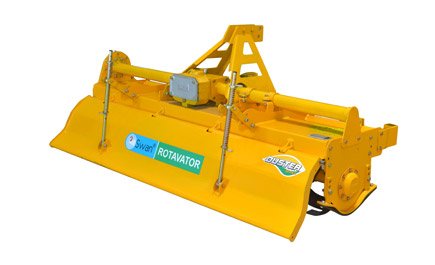

Swan Agro Duster Series Rotary Tiller is used for Light soil operation with light duty Gear Box.
The application includes: Soil conditioning, weed control, fertilizer incorporation, seedbed preparation and puddling in wet land.
Most suitable for large & medium farmers and field preparation for crops like sugarcane, cotton, rice, potato, wheat, vegetables and dry land crops.
Available in Size : 5’, 6’, 7’
Features
- Specially designed for light weight Rotary Tiller requirements for Light Soil operation.
- Specially designed Leakproof Aluminium Casting Gear Box.
- Baldes are Tempered & made of Boron Steel from Italy. Available with L-Type or C-Type Blades- Interchangeable.
- Export Quality Heavy Duty Gear Box.
- Rotary Tiller frame is made of Heavy Duty Pipe.
- Nut and Bolt is made of High Tensile Steel (10.9 Grade).
- Side Transmission is driven through Gears providing Smooth Drive & Longer Service Life.
- Save Fuel & Time.
- Available from 1.25 mrt to 2.00 mtr size for 30 H.P to 60 H.P tractors.
Advantages
- Suitable for operation on Light Soil.
- By combining disking, cultivating and planking, rotavator prepares soil quickly for sowing.
- Rotary Tiller helps in reducing tractor’s wear and tear, save fuel & time, maintain the moisture of the soil.
- Rotary tiller prepares all type of soil – Wet & Dry.
- Stubbles and residue of previous crop is chopped into pieces and thoroughly mixed in soil to form organic manure.
- Rotary Tiller is extremely helpful in Sugar Cane, cotton, Paddy and Vegetables cultivation.
- Heavy Duty PTO Shaft with Shear Bolt for overload protection.
Technical Specifications
| wdt_ID | Description/ Models | NSEDS RT 125 | NSEDS RT 150 | NSEDS RT 175 | NSEDS RT 200 |
|---|---|---|---|---|---|
| 1 | Overall Width (mm) | 1550 | 1800 | 2050 | 2300 |
| 2 | Tillage Width (mm) | 1250 | 1500 | 1750 | 2000 |
| 3 | Tillage Depth (mm) | 120 - 150 | 120 - 150 | 120 - 150 | 120 - 150 |
| 4 | Gear Box | Single Speed/ Multi - Speed | Single Speed/ Multi - Speed | Single Speed/ Multi - Speed | Single Speed/ Multi - Speed |
| 5 | Side Transmission | Gear Drive | Gear Drive | Gear Drive | Gear Drive |
| 6 | PTO Speed (Rpm) | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| 7 | No. of Blades | 30 | 36 | 42 | 48 |
| 8 | Blade specifications | L type 5" | L type 5" | L type 5" | L type 5" |
| 9 | Weight(Kgs. Approx.) | 330 | 350 | 370 | 390 |
| 10 | Tractor Power (H.P) | 30 - 35 | 35 - 45 | 45 - 50 | 50-60 |
