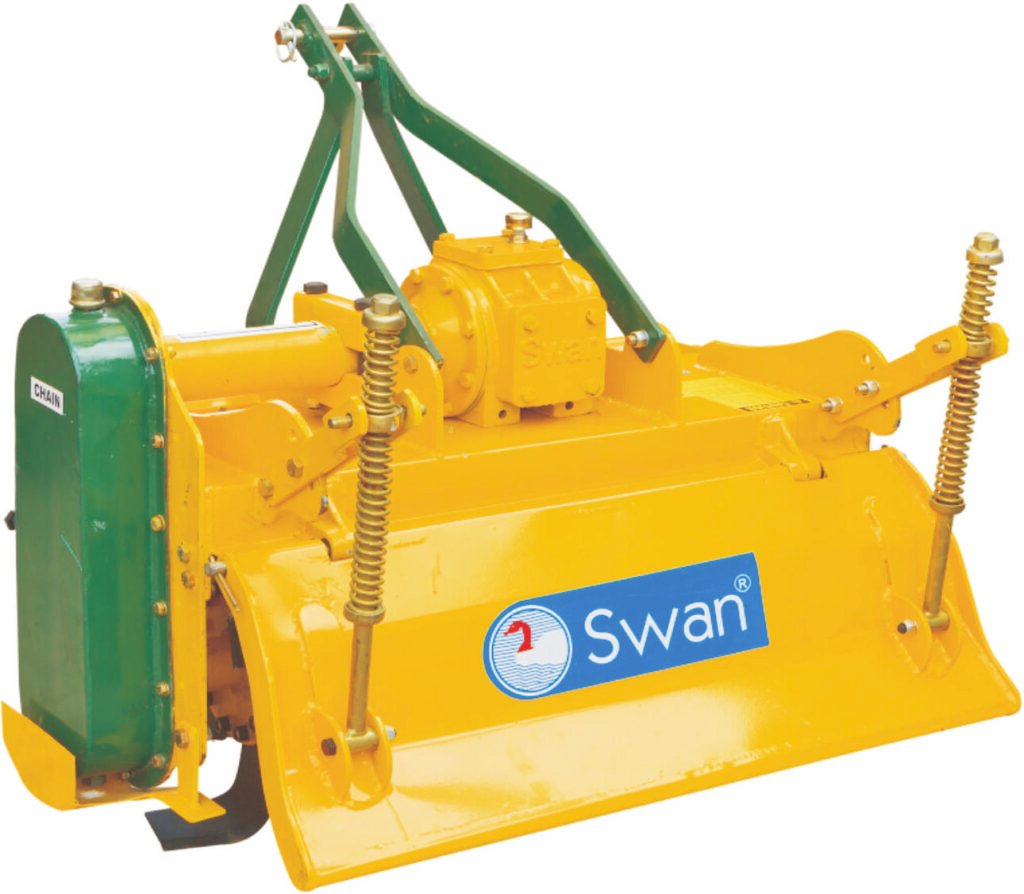

Swan Agro Mini Series Rotary Tiller is especially designed for low HP Tractors. Its compact and light weight but strong design makes the machine suitable to be used on light soil, shallow tillage and wet lands.
Most appropriate tillage equipment for fruits and vegetable growers, rice growers, hobby farmers, landscapers, nurseries, vineyards, green house farmers and gardeners.
Available in sizes 3’, 4’, & 5’

Features
- Specially designed Leakproof Aluminium Casting Gear Box.
- Baldes are Tempered & made of Boron Steel from Italy
- Available with L-Type or C-Type blades- Interchangeable.
- Export Quality Heavy Duty Gear Box
- Nut and Bolt is made of High Tensile Steel (10.9 Grade).
- Side Transmission is driven through Gears providing Smooth Drive & Longer Service Life.
- Save Fuel & Time.
- Available from 0.80 mtr to 1.20 mtr size for 16 H.P to 24 H.P tractors.
Advantages
- By combining disking, cultivating and planking, rotavator prepares soil quickly for sowing.
- Rotary Tiller helps in reducing tractor’s wear and tear, save fuel & time, maintain the moisture of the soil.
- Rotary tiller prepares all type of soil – Wet & Dry.
- Stubbles and residue of previous crop is chopped into pieces and thoroughly mixed in soil to form organic manure.
- Mini Series Rotary Tiller is extremely helpful Inter Cultivation for bananas, grapes, pomegranates and other orchard cultivation.
- Versatile and compact for medium and small farmers have tractors range 15 H.P. to 25 H.P
- Heavy Duty PTO Shaft with Shear Bolt for overload protection.

Technical Specifications
| wdt_ID | Description/ Models | NSEMS RT 080 | NSEMS RT 100 | NSEMS RT 120 |
|---|---|---|---|---|
| 1 | Overall Width (mm) | 900 | 1100 | 1300 |
| 2 | Tillage Width (mm) | 800 | 1600 | 1800 |
| 3 | Tillage Depth (mm) | 100 - 120 | 100 - 120 | 100 - 120 |
| 4 | Gear Box | Single Speed/ Multi - Speed | Single Speed/ Multi - Speed | Single Speed/ Multi - Speed |
| 5 | Side Transmission | Gear Drive | Gear Drive | Gear Drive |
| 6 | PTO Speed (Rpm) | 540/1000 | 540/1000 | 540/1000 |
| 7 | No. of Blades | 16 | 20 | 24 |
| 8 | Blade specifications | L type 4" | L type 4" | L type 4" |
| 9 | Weight(Kgs. Approx.) | 165 | 180 | 195 |
| 10 | Tractor Power (H.P) | 16-20 | 20 - 22 | 22 - 24 |
