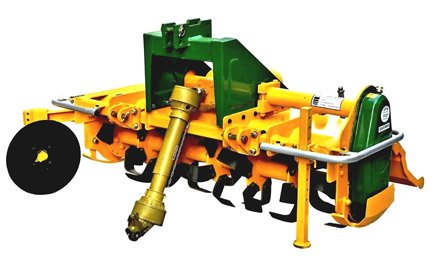

Swan Agro Standard Series Rotary Tiller is especially designed for Heavy and Robust operation. It is Most suitable for tilling soil for seed bed preparation soil conditioning, fertilizer incorporation, weed control & land scrapping.
Available in working width 4’, 5’, 6’, 7’ & 8’ under robust/ heavy operation.
Features
- Specially designed Leakproof Aluminium Casting Gear Box.
- Baldes are Tempered & made of Boron Steel from Italy.Available with L-Type or C-Type blades- Interchangeable.
- Export Quality Heavy Duty Gear Box
- Rotary Tiller frame is made of Heavy Duty Pipe.
- Nut and Bolt is made of High Tensile Steel (10.9 Grade).
- Side Transmission is driven through Gears providing Smooth Drive & Longer Service Life.
- Save Fuel & Time.
- Available from 1.25 mrt to 2.25 mtr size for 30 H.P to 65 H.P tractors.
- Heavy Duty PTO Shaft with Shear Bolt for overload protection.
Advantages
- Recommended for Heavy/ Robust Operation.
- By combining disking, cultivating and planking, rotavator prepares soil quickly for sowing.
- Rotary Tiller helps in reducing tractor’s wear and tear, save fuel & time, maintain the moisture of the soil.
- Rotary tiller prepares all type of soil – Wet & Dry.
- Stubbles and residue of previous crop is chopped into pieces and thoroughly mixed in soil to form organic manure.
- Rotary Tiller is extremely helpful in Sugar Cane, cotton, Paddy and Vegetables cultivation.
- Heavy Duty PTO Shaft with Shear Bolt for overload protection.
Technical Specifications
| wdt_ID | Description/ Models | NSESS RT 125 | NSESS RT 150 | NSESS RT 175 | NSESS RT 200 | NSESS RT 225 |
|---|---|---|---|---|---|---|
| 1 | Overall Width (mm) | 1550 | 1800 | 2050 | 2300 | 2550 |
| 2 | Tillage Width (mm) | 1250 | 1500 | 1750 | 2000 | 2250 |
| 3 | Tillage Depth (mm) | 150 - 180 | 150 - 180 | 150 - 180 | 150 - 180 | 150 - 180 |
| 4 | Gear Box | Single Speed/ Multi - Speed | Single Speed/ Multi - Speed | Single Speed/ Multi - Speed | Single Speed/ Multi - Speed | Single Speed/ Multi - Speed |
| 5 | Side Transmission | Gear Drive | Gear Drive | Gear Drive | Gear Drive | Gear Drive |
| 6 | PTO Speed (Rpm) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| 7 | No. of Blades | 30 | 36 | 42/48 | 48/54 | 54/60 |
| 8 | Blade specifications | L type 5" | L type 5" | L type 5" | L type 5" | L type 5" |
| 9 | Weight(Kgs. Approx.) | 445 | 470 | 495 | 520 | 570 |
| 10 | Tractor Power (H.P) | 30 - 35 | 35 - 45 | 45 - 50 | 50 - 60 | 60-65 |
